ZJQ submersibles sand pump

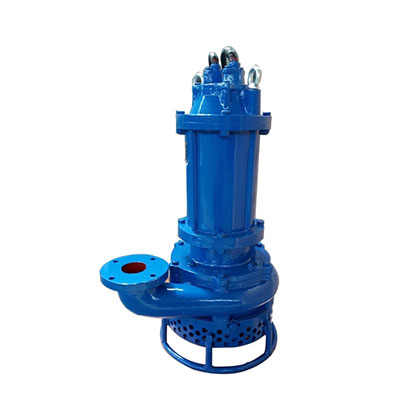

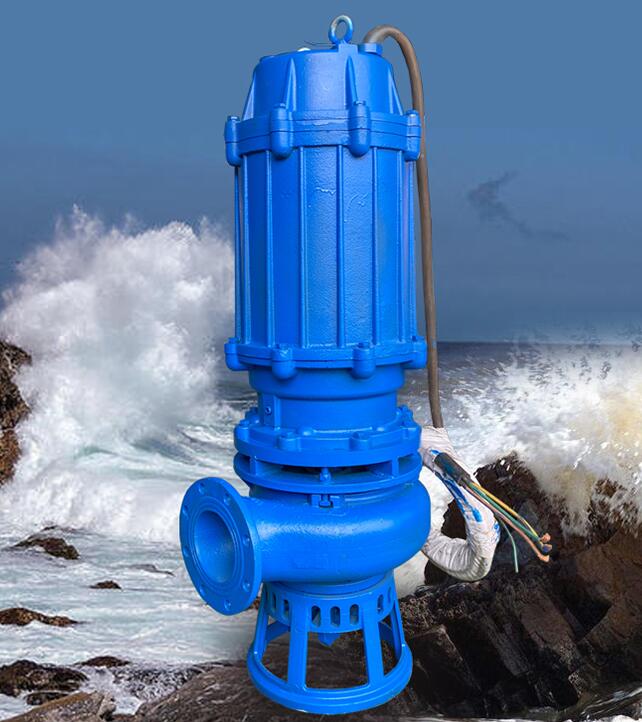

Introduction of ZJQ submersible sand pump

ZJQ submersible sand pump is equipment of motor and pump use same shaft submerge together to medium and work.

ZJQ submersible sand pump is equipment of motor and pump use same shaft submerge together to medium and work.Special wear-resistant material is the company for domestic special industrial and mining research and development of high-chromium alloy over-flow components (material chrome chrome 27,chrome 27, chrome 28, chrome 30, etc.)，Wear service life can reach more than 10 times the ordinary sand pump.Model by diameter is divided into 40、50、65、80、100、150、200、250、300、350、400.

ZJQ series submersible sand pump is one kind of hydraulic machine completed with pump and motor, submersible in pumping liquid. The pump set has advantage features of high quality special material , updated structure, wide flow channel, high capacity for sewage. It is suitable for delivery liquid contain with sand,coal slurry, mine solid. It is widely used in mining,metallurgy, thermal power station etc. It is a ideal alternative product for traditional slurry pump.

Features for ZJQ submersible slurry pump

1.Power supply for the 50Hz, 380V three-phase AC power supply.
2.The maximum temperature of the medium shall not be higher than 40 ℃, the media does not contain flammable and explosive gas.
3.The maximum weight of solid particles in the media: 45% of the ash, while sand, slag, pulp is 60%.
4.Unit maximum diving depth is generally not more than 20 meters, after a special modification up to 60 meters, the minimum diving depth of not less than 1 meter.

5.Unit in the medium to work as vertical is well, running for continuous operation.

6.Wear parts are all constructed with abrasion resistant materials – chromium alloy; so pumps have better stability & longer service life
7.Unique mechanical seal device can prevent the electric motor from high pressure water and impurities; thus high suction efficiency can be ensured.
8.In addition to the main impeller, a pair of agitation impeller is equipped to help break and mix the sludge.
9.Easy installation, operation and cost saving, since no additional vacuum pump or pump house is needed.
10.Professional technology support is provided during the whole process of the usage and maintenance.

Submersible sand pump usage：
Including but not limited to the following：
1、River, small river, lake, sea, reservoir pumping sand.
2、River, lake, reservoir, port dredging sediment.
3、Pumping sand beneficiation: pumping sand election iron, pumping sand gold, sand selection rare solid.
4、Sewage treatment plant sedimentation tank cleaning.
5、Municipal pipelines, rainwater pumping stations, hydropower station sediment cleaning.
6、Construction (bridge construction wells, etc.) row of sediment, mud.
7、Steel plant blast furnace slag, slag, pumping iron oxide delivery.
8、Concentrator tailings, slag, pulp transport.
9、Coal cinder, slime, coal slurry cleaning.
10、Power plant fly ash, slime, coal slurry transportation.
11、Learn a variety of King Kong sand, quartz sand, steel slag solid particles.
12、Tile factory pumping powder.
13、Coastal areas.
14、Delivery slurry material which containing various impurities .
15、Transport other medium containing larger solid particles.
